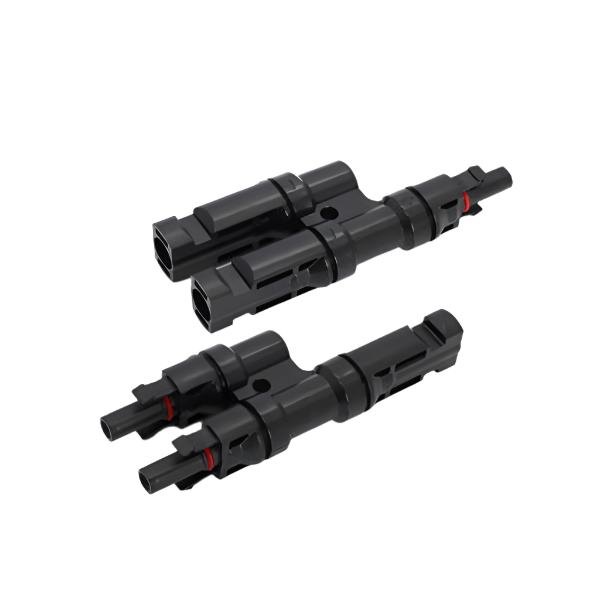

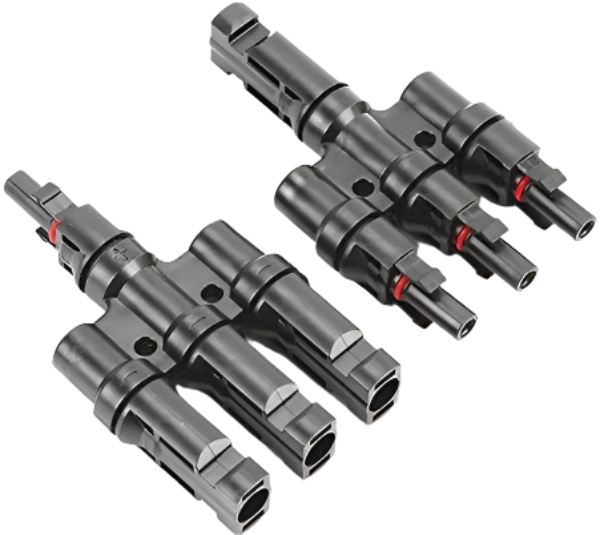

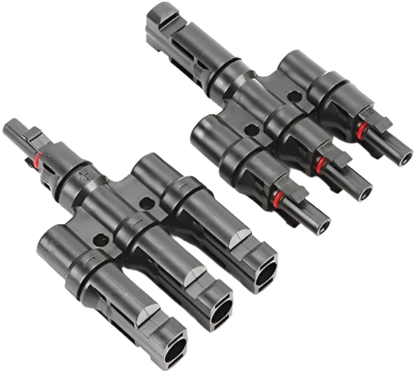

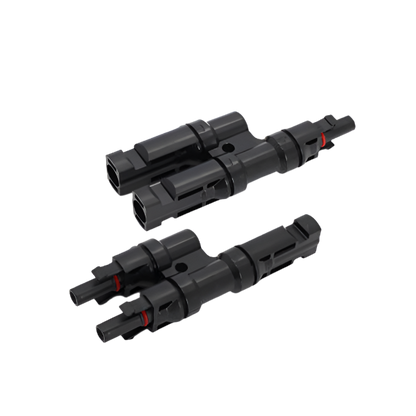

MC4 Branch Connector Pair

Pair of Two and Three Way MC4 Connectors for connecting solar panels in Parallel for increasing Current to combined panel output

The connectors are ISO rated and have rubber O rings to ensure the connection will be waterproof.

Specification
Rated Voltage: DC 1000V
Rated Current: 30A
Contact Resistance: <5mΩ
Safety Class: class II
Waterproof Grade: IP 65
Temperature Range:
-40°C~+85°C
Cable Standard: 2.5/4/6mm2
Flame Retardant Grade: UL94-V0
Insulation Material: PPO
Composite Contact Material: Tin plated copper
