GoodWe
GoodWe Lynx Home U Series (LV)
GoodWe Lynx Home U Series (LV)
Contact Us
Couldn't load pickup availability

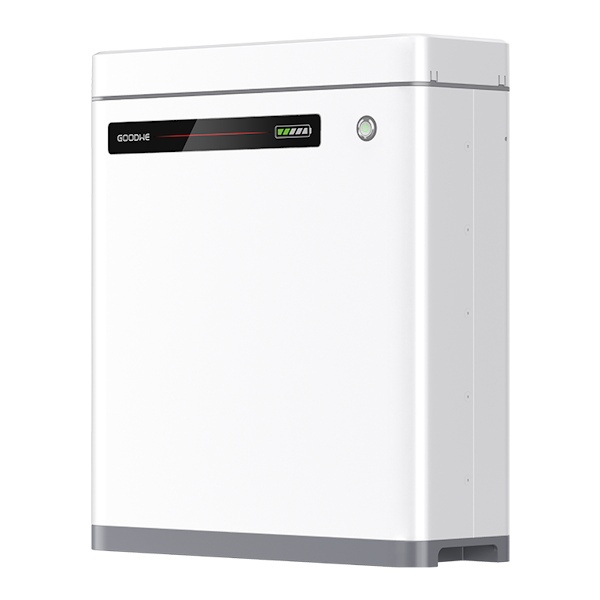

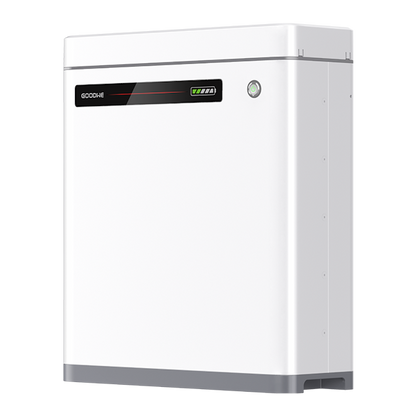

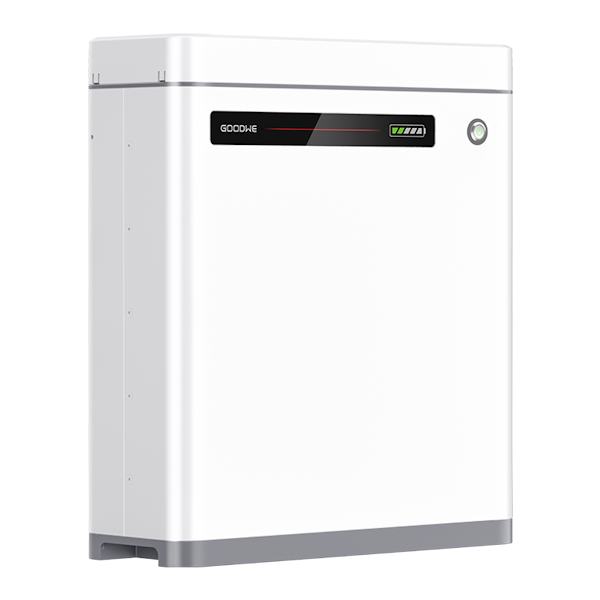

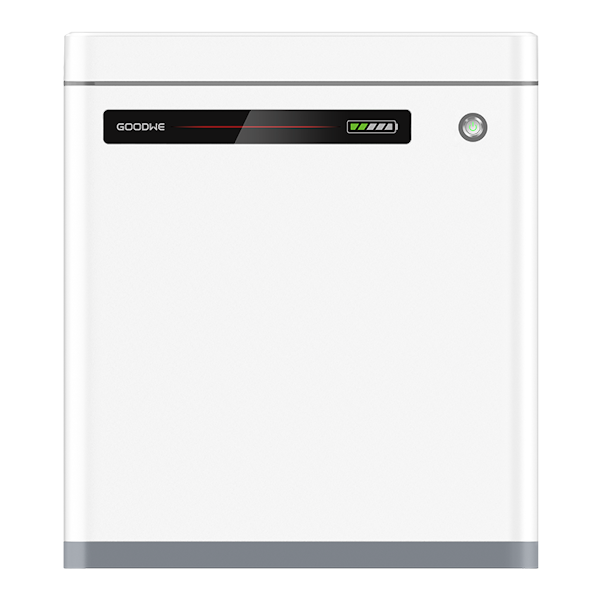

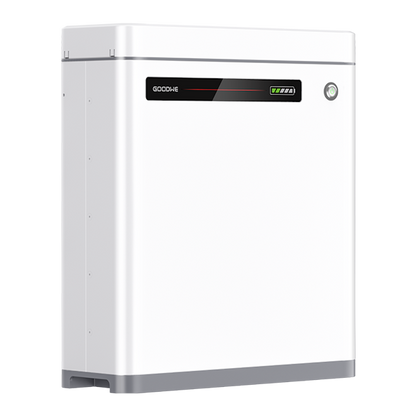

Lynx Home U Series is a low-voltage lithium battery specially designed for residential applications with superior performance. Compatible with GoodWe ES/EM/SBP inverters, Lynx Home U Series comes with GoodWe one-stop-shop solution saving you considerable time and effort. It can be used flexibly for self-consumption and backup applications with a wide capacity range scalable from 5.4 – 32.4 kWh. The installation and commissioning are easier and faster than ever with a simple Plug and Play wiring and module auto recognition during system setup. Meet this highly efficient solution for storing your solar power and use it whenever needed.
Friendly & Thoughtful Design
The stackable self-detecting modules are built for ultra-simplified assembly, and pre-wired communication cables provide Plug & Play wiring to skip the complex internal wiring and commissioning, bringing fast installations for an easy start.
Flexible & Adaptable Applications
Lynx Home U Series is compatible with GoodWe ES/EM/SBP inverters, allowing for a more effortless energy storage solution construction. With its wide capacity range scalable from 5.4 kWh to 32.4 kWh, Lynx Home U Series can be set to adapt to the flexible needs whenever you need.
Specifications
Usable Energy (kWh)*1 5.4
Cell Type LFP (LiFePO4)
Nominal Voltage (V) 51.2
Operating Voltage Range (V) 47.5 ~ 57.6
Nominal Dis- / Charge Current (A) 50
Nominal Power (kW) 2.56
Communication CAN, RS485
Weight (kg) 57
Dimensions (W × H × D mm) 505 × 570 × 175 (LX U5.4-20)
Operating Temperature Range (°C) Charge: 0 ~ +50 / Discharge: -10 ~ +50
Relative Humidity 0 ~ 95%
Max. Operating Altitude (m) 2000
Ingress Protection Rating IP65
Mounting Method Wall Mounted / Grounded
Standard and Certification
Safety IEC62619, IEC63056, IEC 62040, CEC
EMC CE, RCM
Transportation UN38.3
