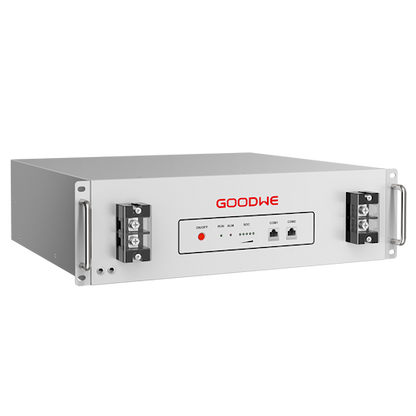

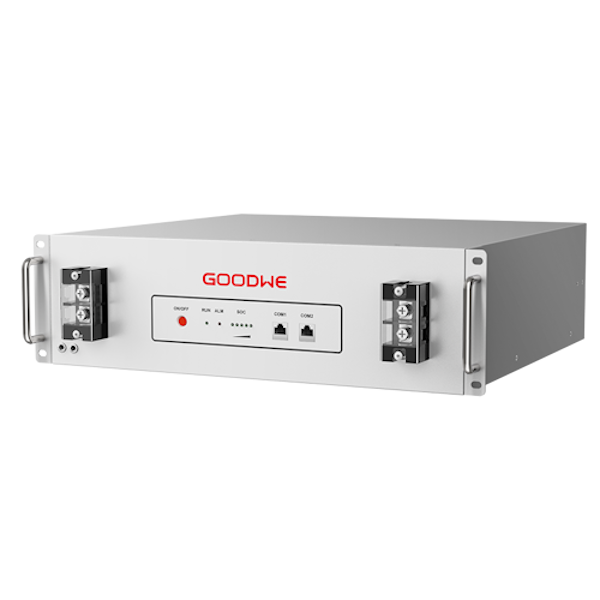

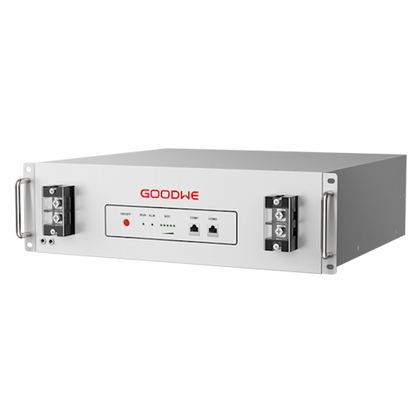

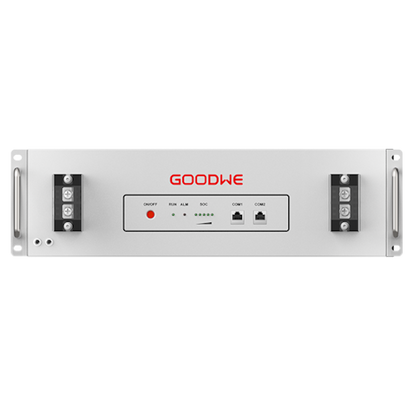

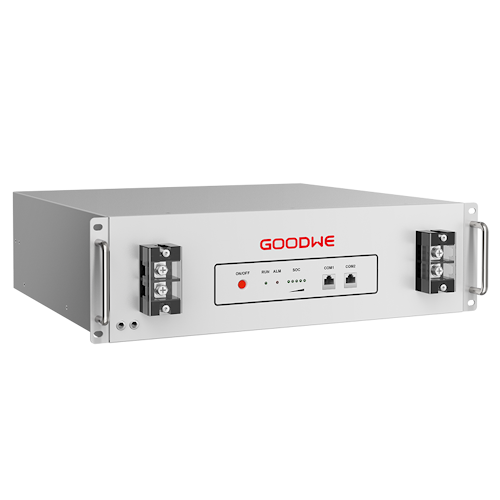

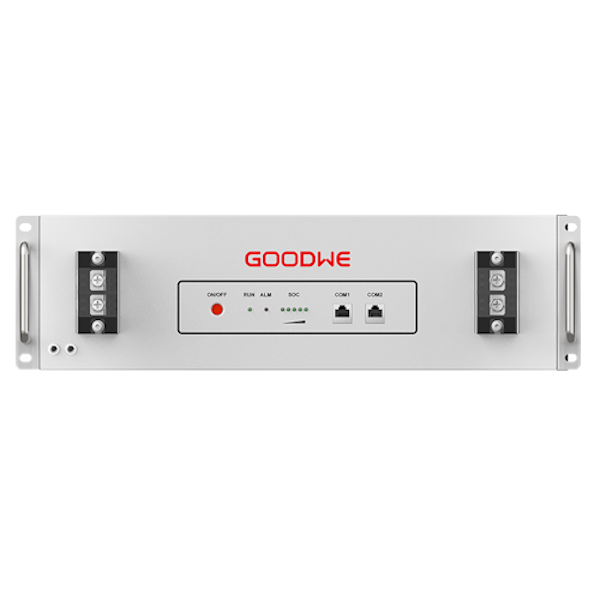

GoodWe Lynx A Series 5kWh
GoodWe Lynx A Series 5kWh
Contact Us
Couldn't load pickup availability
Harnessing the reliability of lithium iron phosphate (LFP) battery cell technology to ensure safety and longevity, GoodWe's low-voltage Lynx A Series has been designed to cater to residential requirements. With a focus on maximizing self-consumption and providing reliable solar power backup, this system ensures a seamless energy experience for homeowners. Moreover, the battery presents high energy density, enabling effective storage of significant energy within a confined space.
Smart Control for Smart Energy
The Lynx A Series facilitates intelligent remote monitoring of the entire energy storage system, enabling remote updates as well. Additionally, it possesses the capability to autonomously restart when the supply voltage returns to a sufficient level following an undervoltage fault.
Flexible & Adaptable Applications
Lynx A Series is compatible with GoodWe residential energy storage inverters such as ES G2 Series, allowing for a more effortless energy storage solution construction. Whether additional capacity is required for excess solar energy storage or for backup power, it can be expanded to fulfill these requirements. Its flexible and scalable design makes it suitable for various applications.
Specifications
Usable Energy (kWh) 5
Battery Module LX A5.0-10: 51.2V 5.0kWh
Number of Modules 1
Cell Type LFP (LiFePO4)
Nominal Voltage (V) 51.2
Operating Voltage Range (V) 47.5 ~ 57.6
Nominal Dis- / Charge Current (A) 60 120 n × 60*3
Nominal Power (kW) 3
Operating Ambient Temperature Range (°C) Charge: 0 ~ +50; Discharge: -10 ~ +50
Relative Humidity 0 ~ 95%
Max. Operating Altitude (m) 3000
Communication CAN
Weight (kg) 40
Dimensions (W × H × D mm) LX A5.0-10 Module: 442 × 133 × 420 (Excluding hanger);
483 × 133 × 452 (Including hanger)
Ingress Protection Rating IP21
Mounting Method Cabinet / landing stacked
Standard and Certification
Safety IEC62619, IEC63056, IEC62040-1
EMC EN IEC61000-6-1, EN IEC61000-6-2, EN IEC61000-6-3, EN IEC61000-6-4
Transportation UN38.3, ADR
