GoodWe ETC 50/100 kW | Three phase | 1/2 MPPT | Hybrid inverter (HV)
GoodWe ETC 50/100 kW | Three phase | 1/2 MPPT | Hybrid inverter (HV)
Contact Us
Couldn't load pickup availability

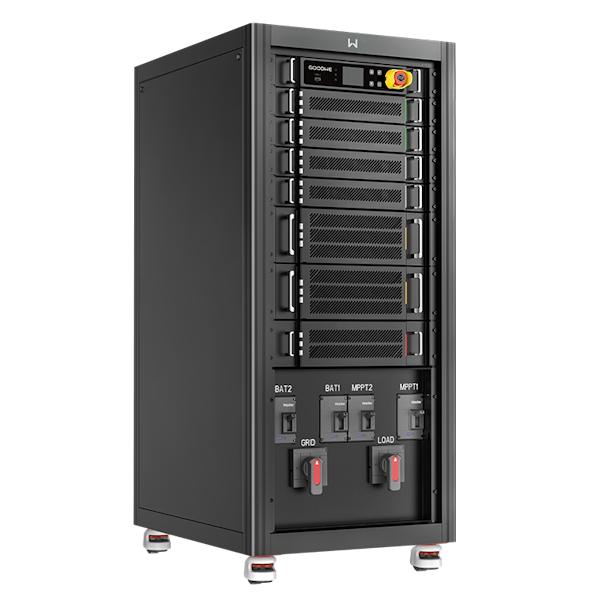

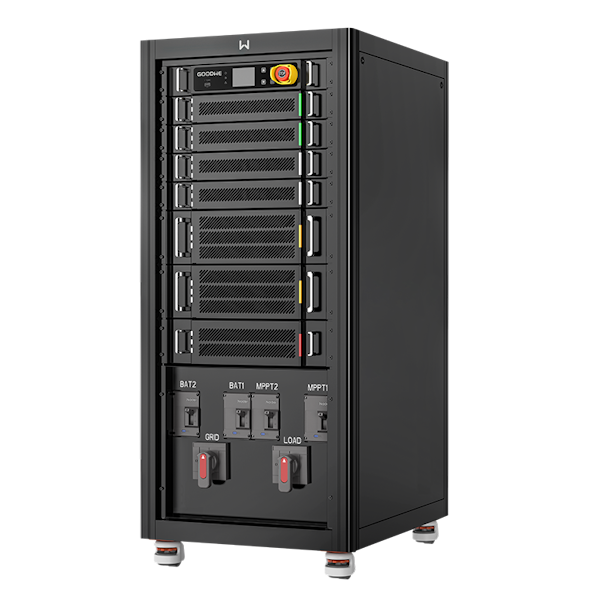

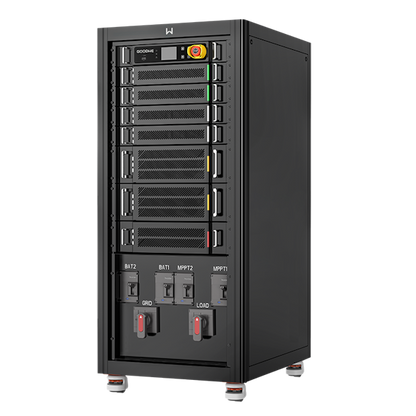

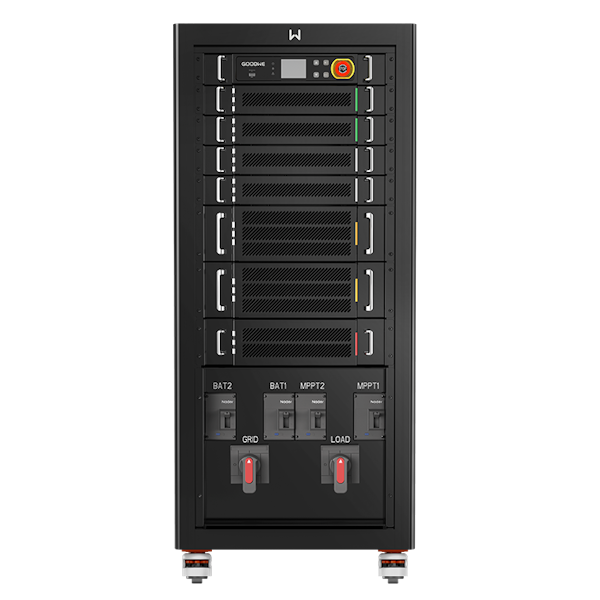

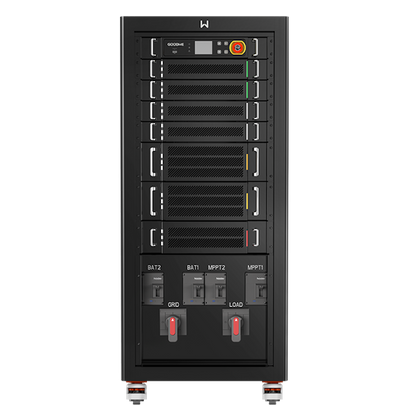

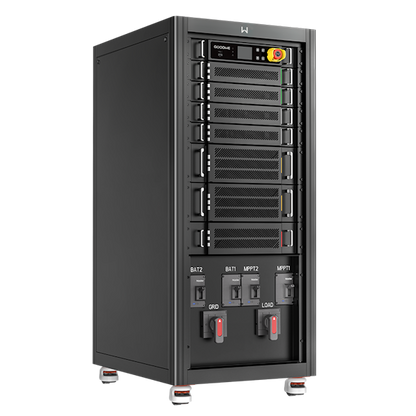

The GoodWe ETC Series is a versatile three-phase hybrid inverter designed to accommodate a wide battery voltage range, spanning from 200 to 865 V. Its user-friendly Plug & Play modularized design consists of five main modules: MPPT, DC/DC, DC/AC, STS, and EMS. This design approach offers increased flexibility and simplifies the installation process.
Featuring UPS-level switching with an impressive response time of less than 10 ms, the GoodWe ETC Series ensures a seamless and uninterrupted power supply for critical loads. Additionally, it incorporates a Type II SPD for enhanced system safety.
The combination of the ETC hybrid inverters and the GoodWe battery system Lynx C (ranging from 101kWh to 156kWh) creates a highly efficient energy storage solution. This solution is an excellent choice for commercial and industrial applications, whether the goal is to increase self-consumption, implement peak load shaving, or establish a robust backup power system.
Amazing flexibility for energy harvest
100% unbalanced output increases load flexibility, extends application scenarios, and maximizes self-consumption ratios. The powerful 110% continuous AC overload capacity guarantees robust energy supply in backup mode.
System stability and safety guaranteed
With the ability to make a smart UPS-level switching in less than 10 ms, an uninterruptible power supply is always operational for critical loads. The lightning protection on both AC and DC sides prevents voltage peaks from destroying connected devices and secures system reliability.
Specifications
Battery Input Data
Battery Type Li-Ion
Nominal Battery Voltage (V) 652.8
Battery Voltage Range (V) 200 ~ 865
Start-up Voltage (V) 200
Number of Battery Input 2
Max. Continuous Charging Current (A) 100 / 100
Max. Continuous Discharging Current (A) 100 / 100
Max. Charging Power (kW) 100
Max. Discharging Power (kW) 110
PV String Input Data
Max. Input Power (kW) 130
Max. Input Voltage (V) 1000
MPPT Operating Voltage Range (V) 250 ~ 960
Start-up Voltage (V) 250
Nominal Input Voltage (V) 600
Max. Input Current per MPPT (A) 100
Max. Short Circuit Current per MPPT (A) 125
Number of MPP Trackers 2
AC Output Data (On-grid)
Nominal Output Power (kW) 100
Nominal Apparent Power Output to Utility Grid (kVA) 100
Max. Apparent Power Output to Utility Grid (kVA) 110
Max. Apparent Power from Utility Grid (kVA) 110
Nominal Output Voltage (V) 400, 3L / N / PE
Output Voltage Range (V) 312 ~ 460 (AU)
Nominal AC Grid Frequency (Hz) 50 / 60
AC Grid Frequency Range (Hz) 47 ~ 52 (AU)
Max. AC Current Output to Utility Grid (A) 159.5
Max. AC Current from Utility Grid (A) 159.5
Power Factor ~1 (Adjustable from 0.8 leading to 0.8 lagging)
Max. Total Harmonic Distortion <3%
AC Output Data (Back-up)
Back-up Nominal Apparent Power (kVA) 100
Max. Output Apparent Power without Grid (kVA) 110
Max. Output Apparent Power with Grid (kVA) 110
Max. Output Current (A) 159.5
Nominal Output Voltage (V) 400
Nominal Output Frequency (Hz) 50 / 60
Output THDv (@Linear Load) <3%
Efficiency
Max. Efficiency 97.6%
European Efficiency 97.3%
Max. Battery to AC Efficiency 97.2%
MPPT Efficiency 99.9%
Protection
PV Insulation Resistance Detection Integrated
Residual Current Monitoring Integrated
PV Reverse Polarity Protection Integrated
Battery Reverse Polarity Protection Integrated
Anti-islanding Protection Integrated
AC Overcurrent Protection Integrated
AC Short Circuit Protection Integrated
AC Overvoltage Protection Integrated
DC Switch Integrated
AC Switch Integrated
DC Surge Protection Type II (Type I + II Optional)
AC Surge Protection Type II (Type I + II Optional)
Emergency Power Off Integrated
Remote Shutdown Integrated
General Data
Operating Temperature Range (°C) -20 ~ +60 (>45°C derating)
Relative Humidity 0 ~ 95% (Non-condensing)
Max. Operating Altitude (m) 4000
Cooling Method Smart Fan Cooling
User Interface LED, LCD, WLAN + APP
Communication with BMS RS485, CAN
Communication with Meter RS485
Communication with Portal RS485, LAN
Weight (kg) <260
Dimension (W × H × D mm) 585 × 1360 × 750
Noise Emission (dB) <68
Topology Non-isolated
Ingress Protection Rating IP20
Mounting Method Grounded
