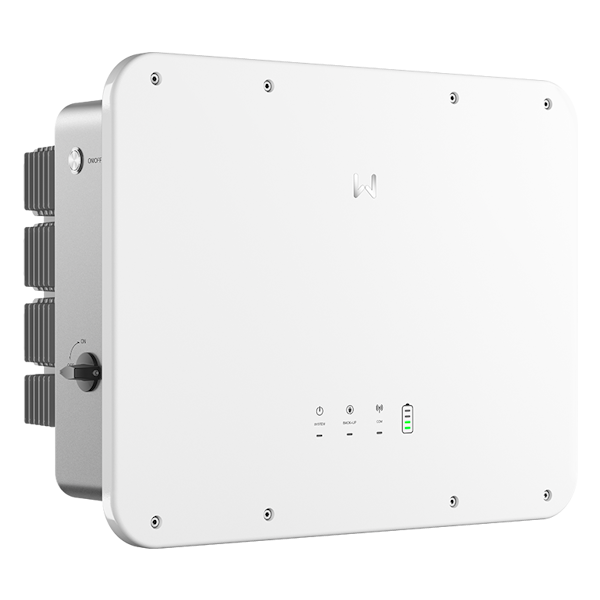

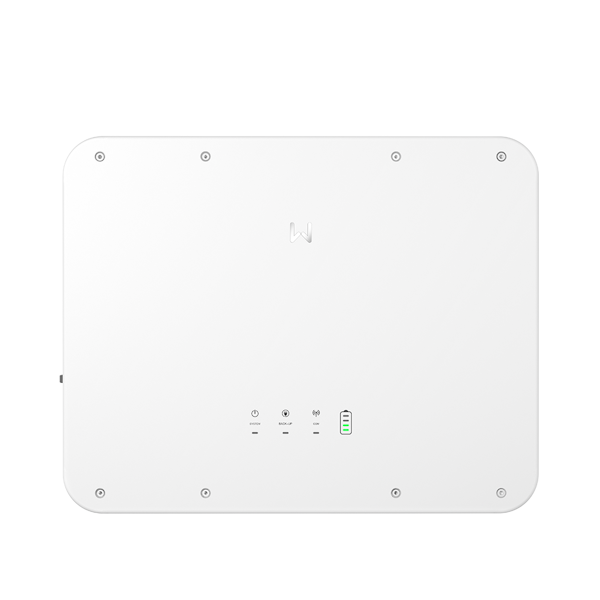

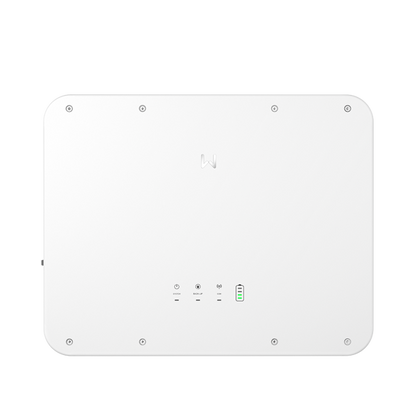

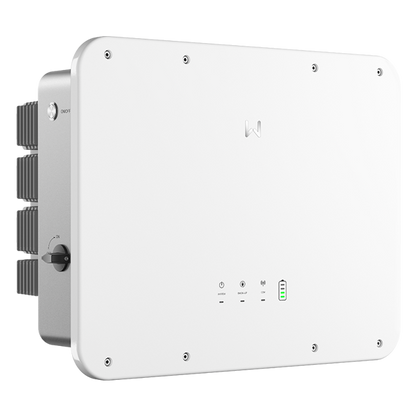

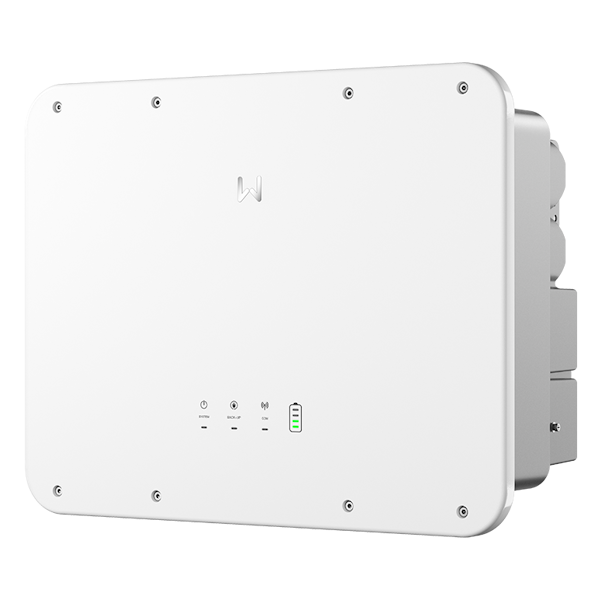

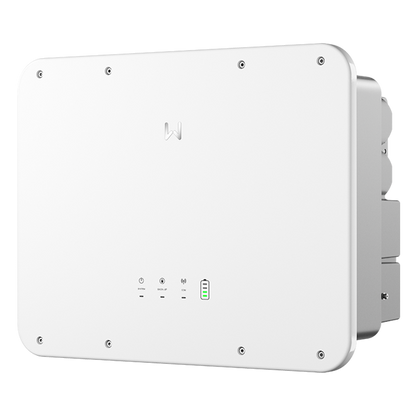

GoodWe ES Uniq 10kW
GoodWe ES Uniq 10kW
Low stock: 2 left
Couldn't load pickup availability
The ES Uniq Series is a dedicated single-phase hybrid inverter engineered for residential applications, delivering cost-effective energy storage solutions with capacities of 8, 10, and 12 kW. This inverter is designed to work seamlessly with 182mm modules, providing a 200% oversizing capacity. Crucially, it can manage up to a 200% overload, ensuring dependable performance, especially during peak usage. It facilitates the parallel connection of up to 16 inverters for both on-grid and off-grid operations, making it well-suited for expanding energy requirements. Moreover, the ES Uniq inverter facilitates generator management and allows for the storage of energy generated by generators.
Superb Safety & Reliability
Featuring optional Arc Fault Circuit Interrupter (AFCI) technology, ES Uniq detects and mitigates potential fire hazards caused by arc faults, ensuring peace of mind. Additionally, boasting an IP65 ingress protection rating, these inverters are safeguarded against dust and water ingress, making them suitable for various environmental conditions, and ensuring consistent performance and longevity.
High Generation and Optimized Consumption
Harness the power of smart load control, allowing to optimize energy usage and maximize efficiency effortlessly. With backup functionality featuring UPS-level switching in under 10 milliseconds, ensure uninterrupted power supply during grid outages, keeping essential appliances running seamlessly.
Specifications
Battery Input Data
Battery Type Li-Ion / Lead-acid
Nominal Battery Voltage (V) 48
Battery Voltage Range (V) 40 ~ 60
Max. Continuous Charging Current (A) 160 200 240
Max. Continuous Discharging Current (A)*1 160 (176 at 10min) 200 (220 at 10min) 240 (264 at 10min)
Max. Charging Power (W)10000
Max. Discharging Power (W) 11000
PV String Input Data
Max. Input Power (W) 20000
Max. Input Voltage (V) 600
MPPT Operating Voltage Range (V) 60 ~ 550
Start-up Voltage (V) 58
Nominal Input Voltage (V) 360
Max. Input Current per MPPT (A)*2 32 / 32
Max. Short Circuit Current per MPPT (A) 48 / 48
Number of MPP Trackers 2
Number of Strings per MPPT 2 / 2
AC Output Data (On-grid)
Nominal Output Power (W) 8000
Nominal Apparent Power Output to Utility Grid (VA)10000
Max. AC Active Power (W)*3 8800
Max. Apparent Power Output to Utility Grid (VA)*3 11000
Max. Apparent Power from Utility Grid (VA) 16500
Nominal Output Voltage (V) 220 / 230 / 240
Output Voltage Range (V) 170 ~ 280
Nominal AC Grid Frequency (Hz) 50 / 60
AC Grid Frequency Range (Hz) 45 ~ 55 / 55 ~ 65
Max. AC Current Output to Utility Grid (A) 50
Max. AC Current From Utility Grid (A) 75
Power Factor ~1 (Adjustable from 0.8 leading to 0.8 lagging)
Max. Total Harmonic Distortion <3%
AC Output Data (Back-up)
Back-up Nominal Apparent Power (VA) 10000
Max. Output Apparent Power (VA) 11000 (20000 at 10s)
Max. Output Current (A) 50
Nominal Output Voltage (V) 220 / 230 / 240
Nominal Output Frequency (Hz) 50 / 60
Output THDv (@Linear Load) <3%
AC Data (Generator)
Nominal Apparent Power from AC generator (VA) 10000
Max. Apparent Power from AC generator (VA) 12000
Nominal Intput Voltage (V) 220 / 230 / 240
Input Voltage Range (V) 170 ~ 280
Nominal AC generator Frequency (Hz) 50 / 60
AC generator Frequency Range (Hz) 45 ~ 55 / 55 ~ 65
Max. AC Current From AC generator (A) 50.0 54.5 54.5
Nominal AC Current From AC generator (A) 45.5 / 43.5 / 41.7
Nominal Input Current (A) 45.5 / 43.5 / 41.7
Efficiency
Max. Efficiency 97.6%
European Efficiency 96.2%
Max. Battery to AC Efficiency 95.5%
MPPT Efficiency 99.9%
Protection
PV String Current Monitoring Integrated
PV Insulation Resistance Detection Integrated
Residual Current Monitoring Integrated
PV Reverse Polarity Protection Integrated
Anti-islanding Protection Integrated
AC Overcurrent Protection Integrated
AC Short Circuit Protection Integrated
AC Overvoltage Protection Integrated
DC Switch Integrated
DC Surge Protection Type III
AC Surge Protection Type III
AFCI Optional
Remote Shutdown Integrated
General Data
Operating Temperature Range (ºC) -35 ~ +60
Relative Humidity 0 ~ 95%
Max. Operating Altitude (m) 3000
Cooling Method Smart Fan Cooling
User Interface LED, WLAN + APP
Communication with BMS CAN
Communication with Meter RS485
Communication with Portal LAN / WiFi
Weight (kg) 27 29 29
Dimension (W × H × D mm) 560 × 444.5 × 226
Topology Non-isolated
Self-consumption at Night (W) <10
Ingress Protection Rating IP65
Mounting Method Wall Mounted
