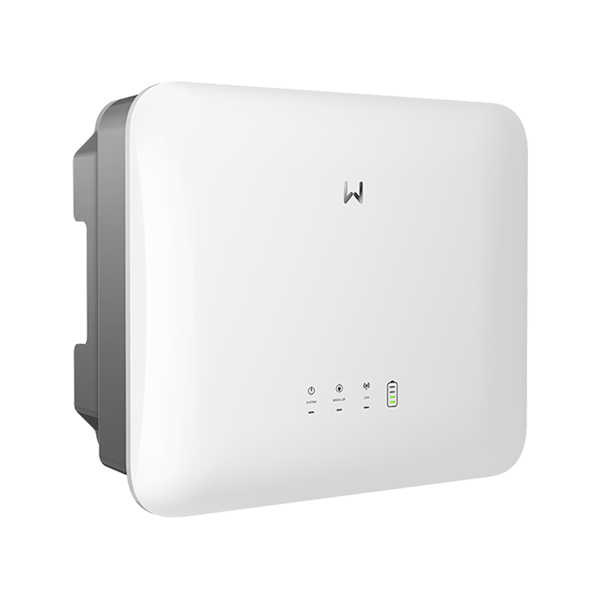

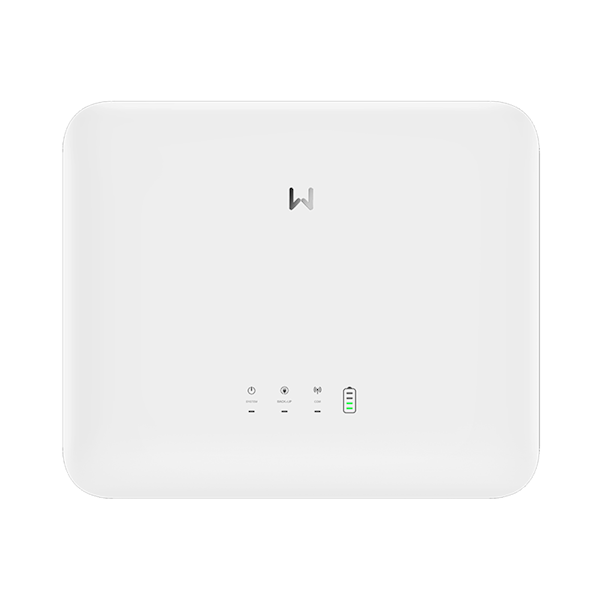

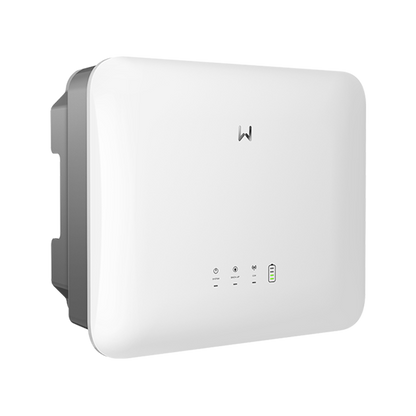

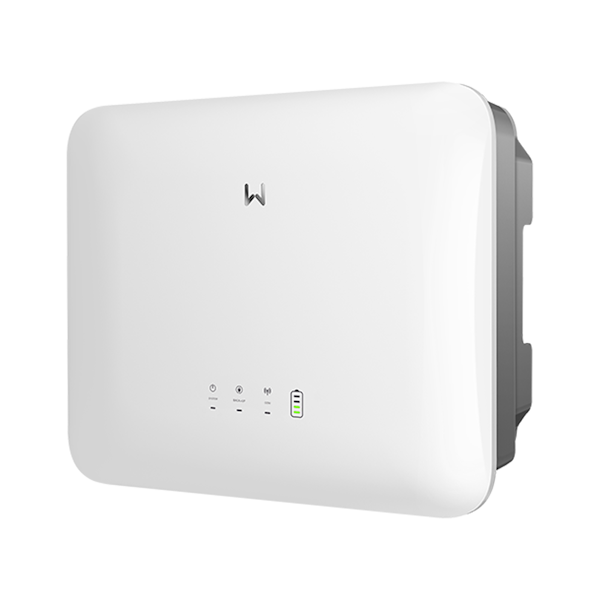

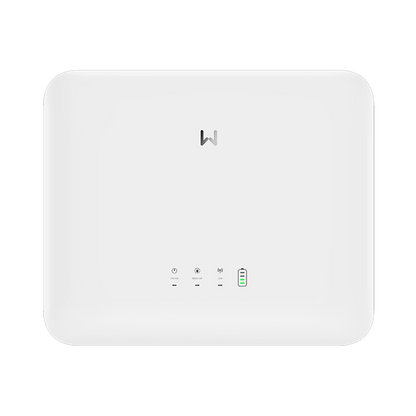

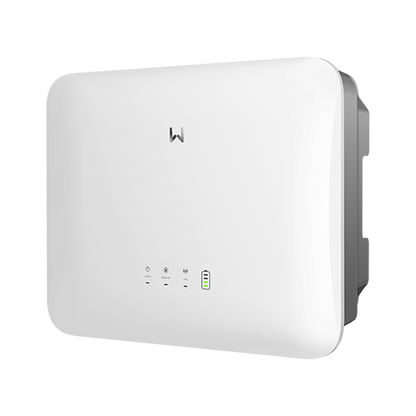

GoodWe ES G2 6kW
GoodWe ES G2 6kW
Contact Us
Couldn't load pickup availability
The GoodWe ES G2 inverter, ranging from 3 to 6kW, is a single-phase hybrid inverter designed to increase self-consumption of the generated solar energy, with the ability to control the flow of energy intelligently. The inverter can automatically realize UPS-level switching to the back-up mode in less than 10ms, with strong backup ability to withstand heavy loads like air conditioners. Its smart design also offers great flexibility for demanding scenarios as it supports parallel connection for dependable backup power supply. Featured with plug-and-play, compact design, and minimal weight, PV installations are quicker and easier to complete than ever before. Importantly, ES G2 is compatible with a wide range of low voltage batteries such as GoodWe Lynx Home U battery. For homeowners looking to achieve a high degree of energy autonomy, reliable power supply and affordable energy prices, the ES G2 is the right choice.
Friendly & Thoughtful Design
ES G2 Series allows for quick-connect Plug & Play on both AC and DC terminals that massively reduces the installation time , which makes it particularly efficient and easy to install. Its elegant and compact design makes it a perfect house fit-in choice for private homes.
Flexible & Adaptable Applications
The power supply ability in backup mode supports large loads for critical operations. To use even more self-generated solar energy in your home, its maximum DC input current of 16A and compatibility with high-power modules generates more power and reduces the amount of electricity purchased from the grid to adapt to your needs.
Specifications
Battery Input Data
Battery Type*1 Li-Ion / Lead-acid Li-Ion / Lead-acid Li-Ion Li-Ion / Lead-acid Li-Ion Li-Ion / Lead-acid Li-Ion
Nominal Battery Voltage (V) 48
Battery Voltage Range (V) 40 ~ 60
Max. Continuous Charging Current (A) 120
Max. Continuous Discharging Current (A)120
Max. Charge Power (W) 6000
Max. Discharge Power (W) 6300
PV String Input Data
Max. Input Power (W) 9000
Max. Input Voltage (V) 600
MPPT Operating Voltage Range (V) 60 ~ 550
Start-up Voltage (V) 58
Nominal Input Voltage (V) 360
Max. Input Current per MPPT (A) 16
Max. Short Circuit Current per MPPT (A) 23
Number of MPP Trackers 2 2
Number of Strings per MPPT 1
AC Output Data (On-grid)
Nominal Apparent Power Output to Utility Grid (VA) 6000*3
Max. Apparent Power Output to Utility Grid (VA) 6000*3 6000*3
Max. Apparent Power from Utility Grid (VA) 10000
Nominal Output Voltage (V) 220 / 230 / 240
Nominal AC Grid Frequency (Hz) 50 / 60
Max. AC Current Output to Utility Grid (A) 27.3
Max. AC Current From Utility Grid (A) 43.5
Power Factor ~1 (Adjustable from 0.8 leading to 0.8 lagging)
Max. Total Harmonic Distortion <3%
AC Output Data (Back-up)
Back-up Nominal Apparent Power (VA) 6000
Max. Output Apparent Power (VA) 6000 (10000@10sec)
Max. Output Current (A) 27.3
Nominal Output Voltage (V) 220 / 230 / 240
Nominal Output Freqency (Hz) 50 / 60
Output THDv (@Linear Load) <3%
Efficiency
Max. Efficiency 97.6%
European Efficiency 96.7%
Max. Battery to AC Efficiency 95.5%
MPPT Efficiency 99.9%
Protection
PV String Current Monitoring Integrated
PV Insulation Resistance Detection Integrated
Residual Current Monitoring Integrated
PV Reverse Polarity Protection Integrated
Anti-islanding Protection Integrated
AC Overcurrent Protection Integrated
AC Short Circuit Protection Integrated
AC Overvoltage Protection Integrated
DC Switch Integrated
DC Surge Protection Type II
AC Surge Protection Type III
AFCI Optional
Remote Shutdown Integrated
General Data
Operating Temperature Range (°C) -25 ~ +60
Relative Humidity 0 ~ 95%
Max. Operating Altitude (m) 3000 (>2000 Derating)
Cooling Method Natural Convection
Display LED, WLAN + APP
Communication with BMS CAN
Communication with Meter RS485
Communication with Portal WiFi / WiFi + LAN / 4G
Weight (kg) 19.6 20.8 20.0 21.5 20.0 21.5 20.0
Dimension (W × H × D mm) 505.9 × 434.9 × 154.8
Topology Non-isolated
Self-consumption at Night (W) <10
Ingress Protection Rating IP65
Mounting Method Wall Mounted
