Dyness PowerBox 10.24Kwh 51.2V 200Ah
Dyness PowerBox 10.24Kwh 51.2V 200Ah
Regular price
$1,814.62 USD
Regular price
Sale price
$1,814.62 USD
Unit price
/
per
Taxes included.
Low stock: 4 left
Couldn't load pickup availability

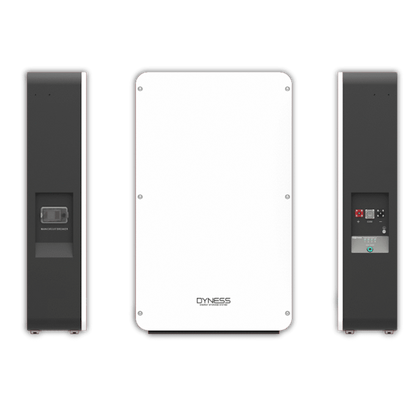

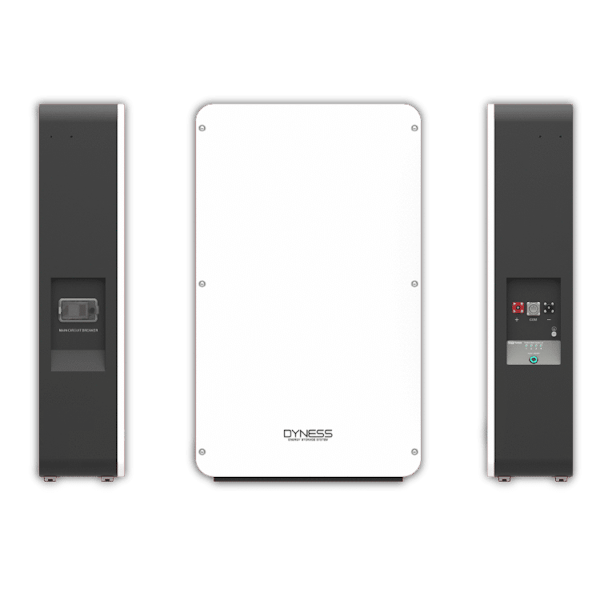

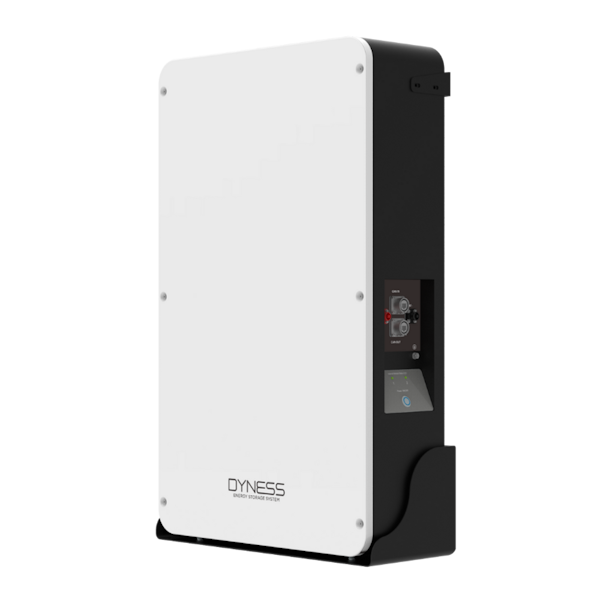

The Powerbox Pro is a type of deep cycleand high capacity LFP battery with improved safety, long lifespan, andoptimized user experience. It is especially designed with IP65 for more flexible and easier installation indoor or outdoor with wall-mounted and landed installation options. With up to 10 kWh for a single unit and max. 5 units inparallel with superior performance, it can meet the household electricity demand. Get ready with Powerbox Pro for super power storage for your life.
Specifications
| Battery Type | LiFePO4 |
| Nominal Battery Energy | 10.24 kWh |
| Operating Voltage | 44.8 ~ 57.6V |
| Usable Energy | 9.728kWh |
| Nominal Voltage | 51.2V |
| Nominal Capacity | 200Ah |
| Nominal Power | 5.12kW |
| Peak Power | 10.24kW |
| Recommended C Rate | 0.5C |
| Recommended Charge/Discharge Current | 100A |
| Recommended Depth of Discharge (DOD) | 90% |
| Net Weight | 103 kg |
| Dimension[W*D*H] | 555*210*928 mm |
| Charging Temp. Range | 0~55℃ |
| Discharging Temp. Range | -20~55℃ |
| Communication | CAN/RS485/RS232 |
| Cycle Life[1] | ≥6000 Cycles |
| Protection Level | IP65 |
| Expansion | up to 5 units in parallel |
| Color | White |
| Alarms | Overcharge/Over-discharge/Overcurrent/ Overtemperature/Short Circuit |
| Pros | Can be used in both off-grid and hybrid setups, compact design, floor or wall-mounted |
| Certification & Safety Standard | UN38.3/CE-EMC/IEC62619/IEC62040/IEC60730/UKCA/CEC Accredited |
[1]Test conditions: 0.2C Charging/Discharging, @25℃, 90% DOD
Documents
Dyness PowerBox Pro Datasheet
Dyness PowerBox Pro User Manual
