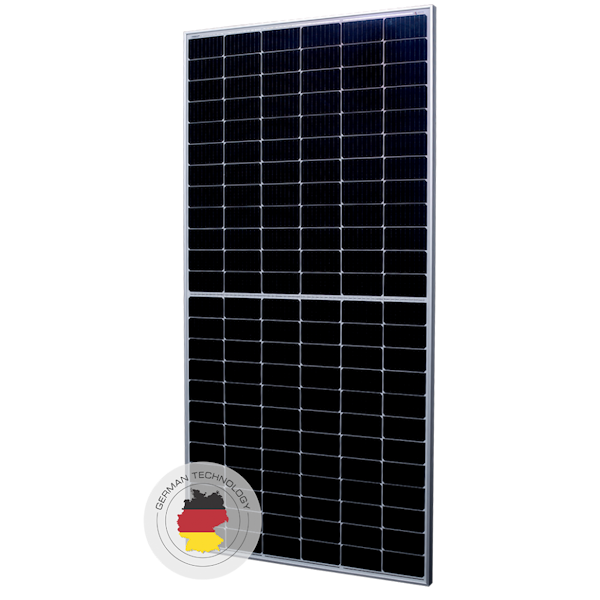

550W AE Solar Panel

AE Solar is one of the leading brands in the renewable energy industry.
Manufactured in Germany, AE Solar providing high-quality new clean energy products and services since 2003

PERC is a cutting-edge development in photovoltaic technology that boosts the performance and efficiency of conventional solar cells. It introduces an additional layer on the back of a conventional solar cell, a passivation layer, which increases energy conversion by capturing light that would otherwise be wasted.

This ingenious structure optimizes the cell's performance and delivers high conversion efficiencies beyond the reach of conventional solar cells.

Diverse and Dynamic Solar Solutions

As we move into a future where sustainable energy is critical, we are turning to the vast, renewable energy source in our cosmos - the sun. Harnessing solar energy is a clean, environmentally friendly and sustainable solution. The key to harnessing this inexhaustible energy lies in the use of innovative solar technologies. One such breakthrough technology is PERC (Passivated Emitter and Rear Cell).

Specification

Nominal Max. Power: 550W
Maximum operating voltage: 42.57V
Maximum operating current: 12.92A
Open-circuit voltage: 51.44V
Short-circuit current: 13.67A
Module efficiency: 21.31%
Power tolerance: 0~+5W
Maximum system Voltage: 1500V
Maximum series fuse rating: 25A

Documents

Datasheet
